NEJE Max 5 Controller Board Mechanical Dimensions

Tech & Materials Lab
1

I’m currently using the NEJE Max 5 controller board in a different project and would like to design a custom enclosure for it.

Unfortunately, I haven’t been able to find any mechanical drawings or PCB dimensions in the documentation. Would it be possible to provide the board dimensions, mounting hole locations, and any other mechanical details available?

I’m referring to this board:
https://neje.wiki/doku.php?id=motherboard_neje_max

Any drawings, sketches, or CAD files would be greatly appreciated.

Thanks in advance!

2

ok We will need to wait two days as our engineers will not be back at work until Monday.

3

Hi @dav ,

Any updates?

Thanks,

Maduka

4

@JackWong

5

unit mm

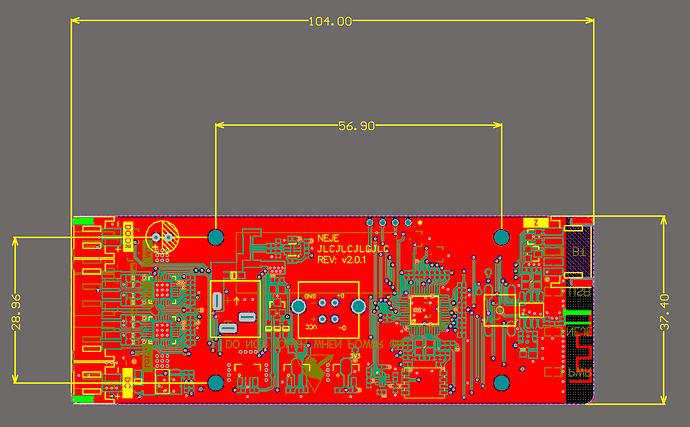

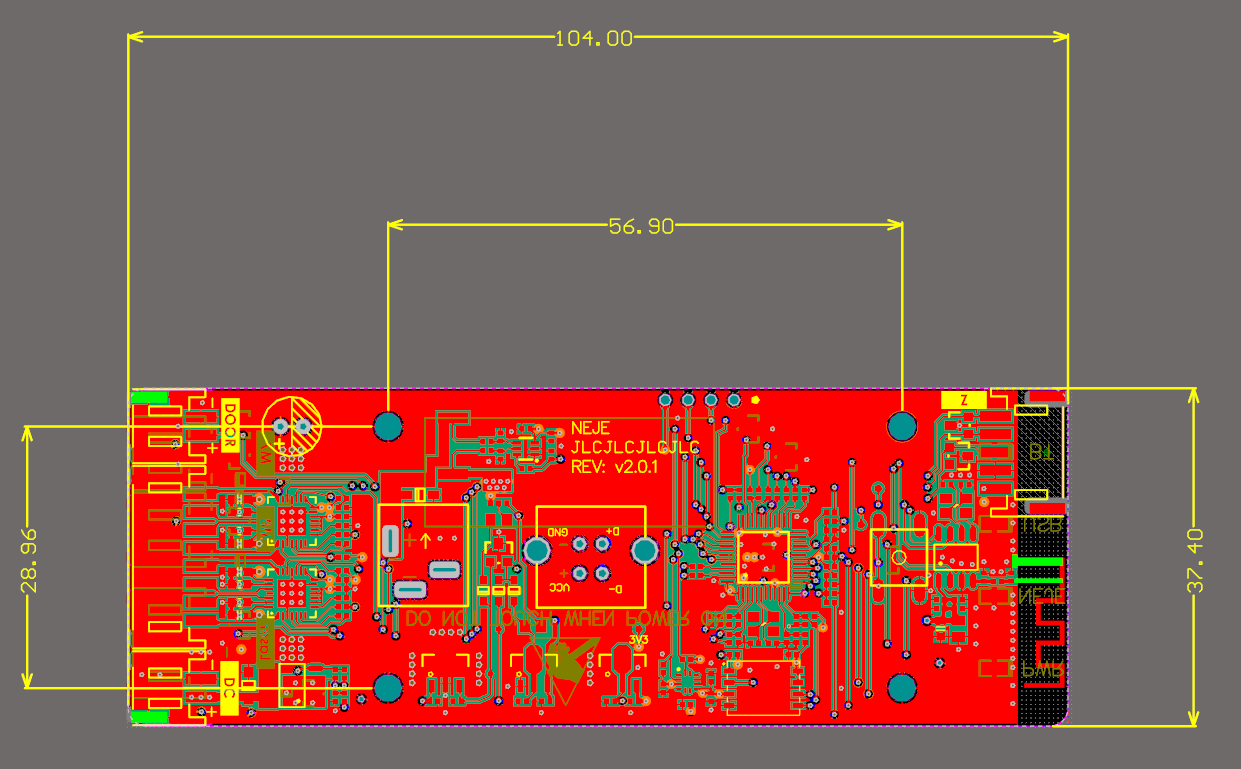

image1241×769 89.3 KB

1 Like
6

Hi @JackWong,

Thank you for sending these dimensions. However, I am looking for the NEJE Max 5 Laser Controller used in the NEJE Max 4 V2 Laser Cutter. Above dimensions provided appear to be for the NEJE 5 Laser Controller for NEJE 5 Laser cutter.

Would it be possible to provide the mechanical dimensions or a drawing for the NEJE Max 5 control board as well?

Thanks,

Maduka

7

unit mm

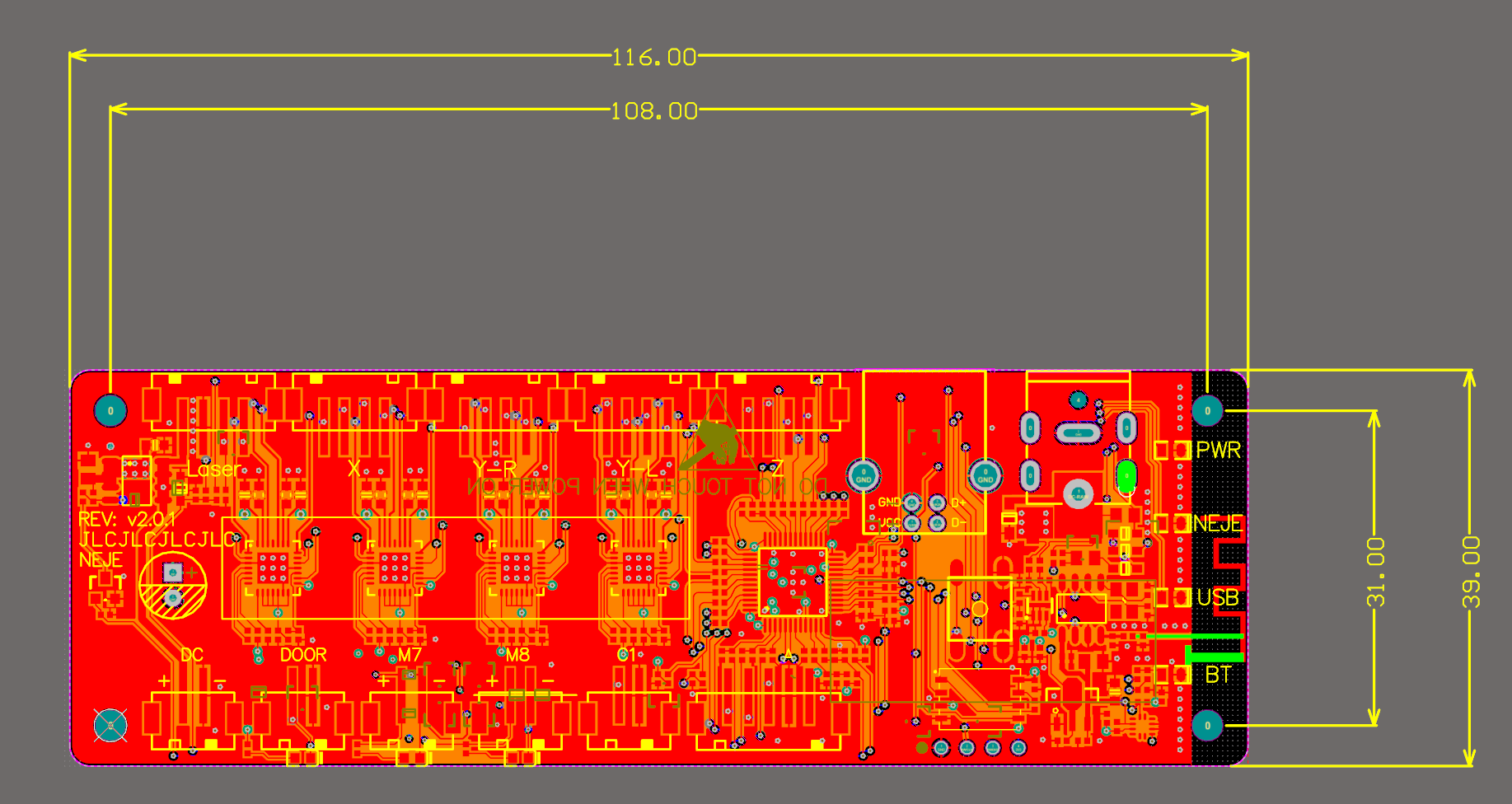

image1835×976 144 KB

1 Like
8

Thank you.
